Retrospec Valen Rev Electric Fat Tire Bike
Product Description:
Valen Rev makes your daily commute a breeze. A 88km battery range can handle even the longest of commutes. Assisted start technology makes awkward start and stops a thing of the past, and a 32km/h top speed with extra stable, Fat 20 x 4.0 tires allow you to conquer any terrain on the way to your home, office, or anywhere in between – all while riding in timeless moto-style.
You’ll feel like a boss when you hop on Valen Rev. Inspired largely by the popular mini bikes of the 60s and 70s, this moto-style e-bike was built with vintage charm, modern e-power, and a renegade attitude. Equipped with the farthest range of our e-bike fleet, Valen Rev will get you where you need to go in style.
Specs:
- Alloy, 6061 TIG welded, hydroformed tube frame
- 20" x 4.0 tires with alloy rims
- 48V/750W Motor with Brushless rear hub motor
- Range up to 88km
- Shimano 7 Speed Tourney Thumb Shifter 7S
- Mechanical disc brakes front & rear
- 72 lbs (includes battery)

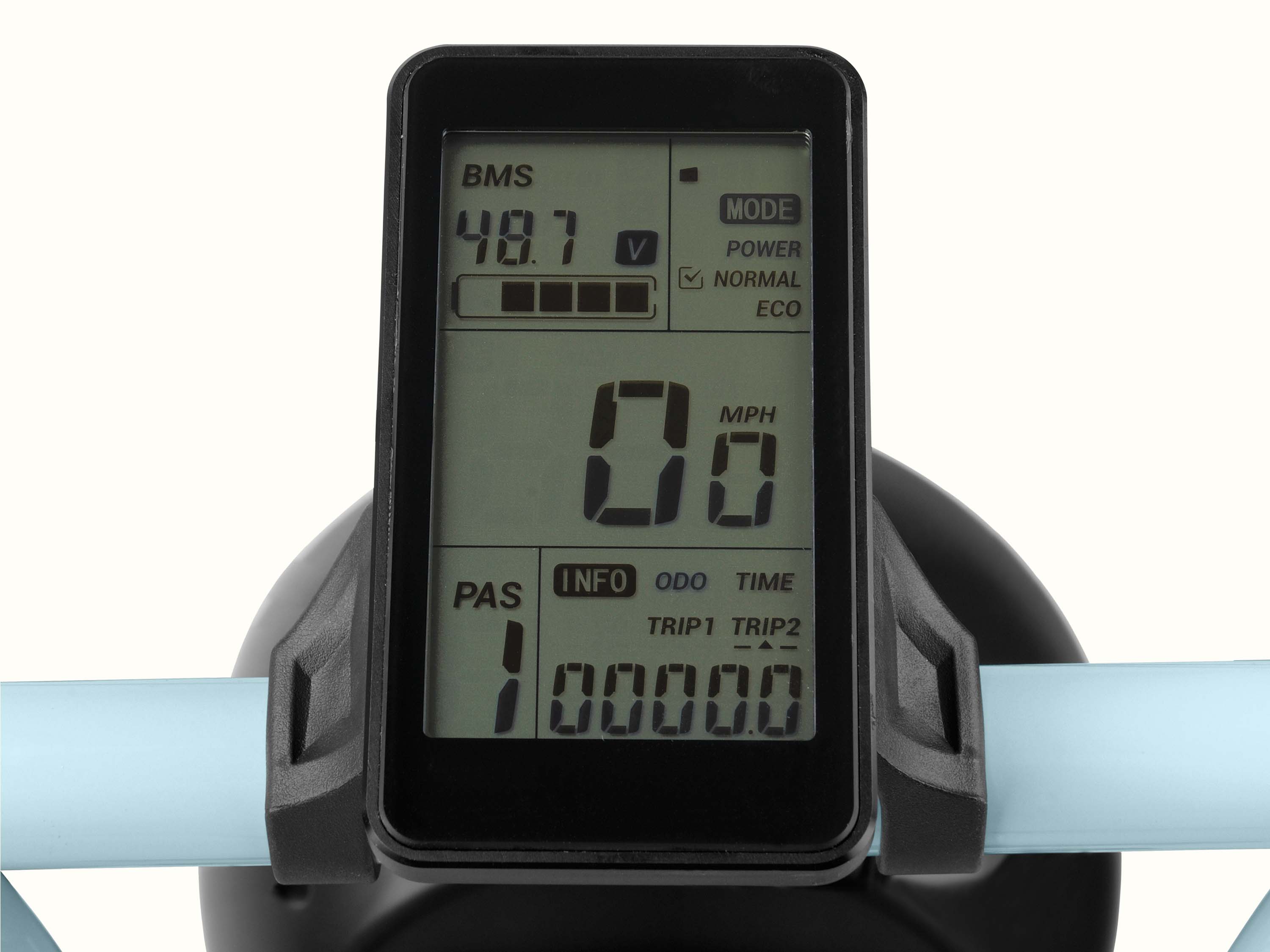

Quick Access to Controls
Handlebar-mounted LED control panel lets you quickly select your pedal assistance level, from 1-6, and keep track of your charge as you ride.
No More Wobbles
Activate Start Aid and the motor will push the e-bike at 6.4km/h for momentum at takeoff and no wobbly first pedal strokes.

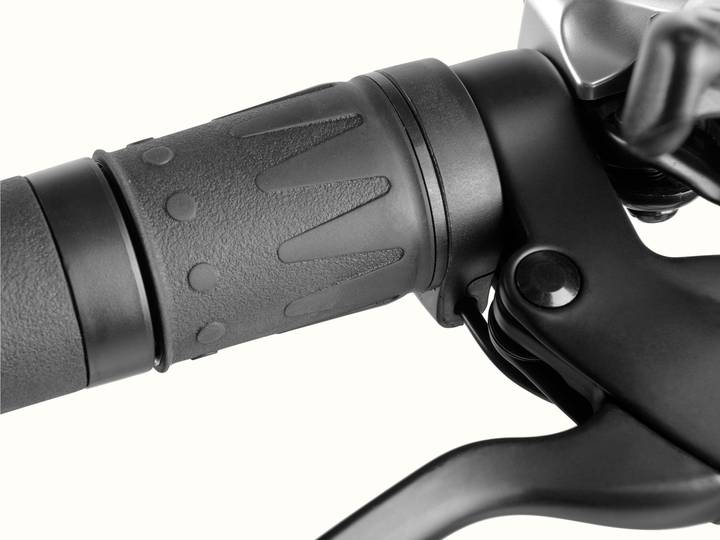

Twist to Go
Convenient twist throttle puts 750W worth of power at your fingertips.
Durable, Long-Lasting, High Range
Li-ion Battery offers a range of up to 88km. Charges within 5-6 hours.
Off-Road Ready
Fat 20x4.0 tires with large tread grip onto chattery terrain for enhanced stability.

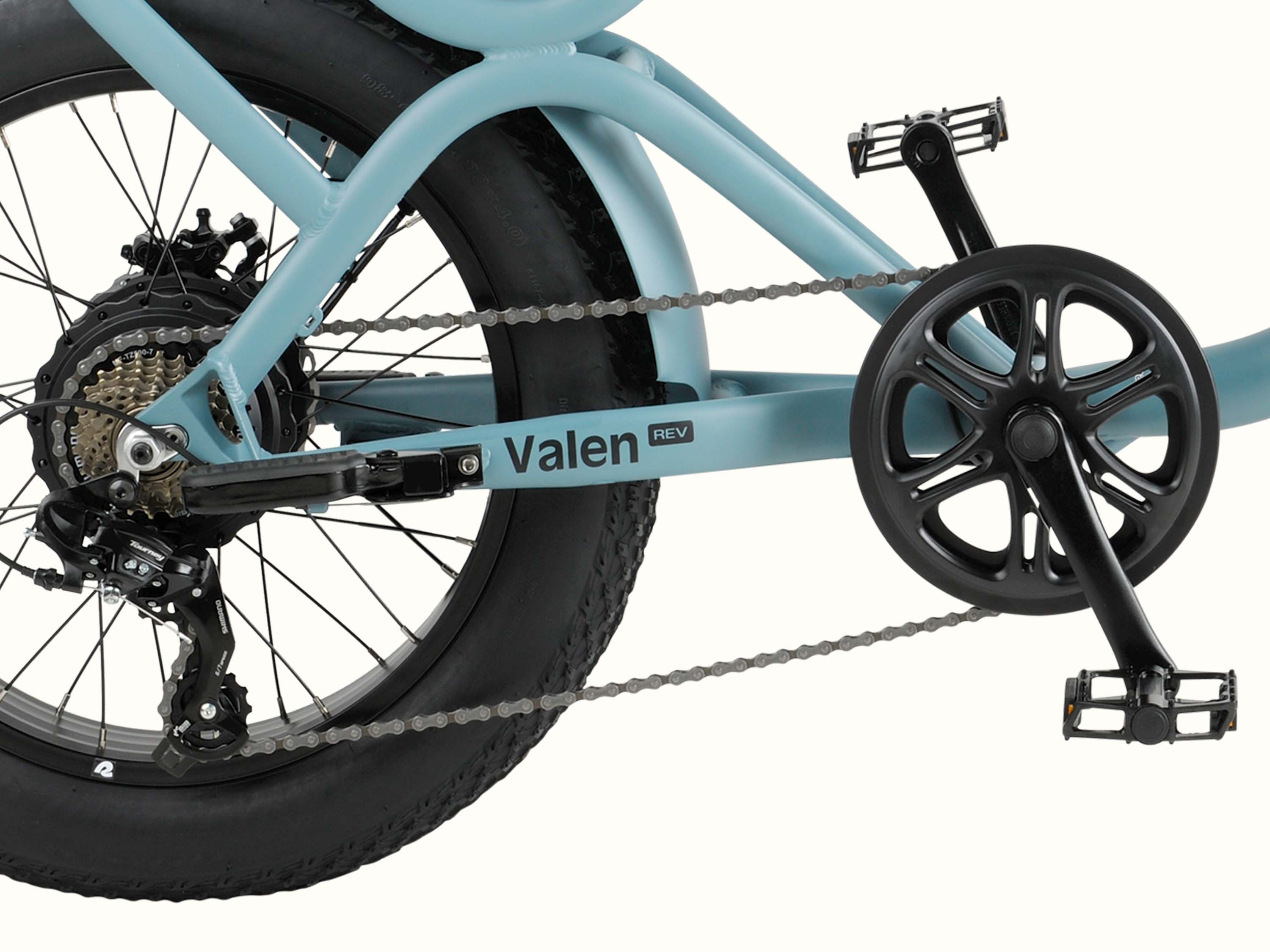

Tackle Inclines or Cruise Flats
With a versatile Shimano 7-speed drivetrain.
Frameset Sizes 1 size 20" Material Alloy, 6061 TIG welded, hydroformed tubing Fork Steel triple-clamp style (w/integrated handlebar), 28.6mm steerer
Wheelset Rims Alloy 20" x 4.0 Fat, 36H x 13G, single-wall Hubs F: Alloy bolt-on, R: Hub motor bolt-on, 36H x 13G Spokes 13G w/brass nipples, black ED finish Tires 20 x 4.0, S/V
E-Power System 48V/750W Motor Brushless rear hub motor, 9-pin connector, MXUS 48V/750W Battery Li-ion + Charger w/US plug, w/power level display. Drive Mode, Display PAS/twist throttle Right side twist throttle, speed sensor, LCD display panel w/6 assistance levels, w/Start-Aid 6kph (~6.4km/h). Controller Yelchm Technology 48V/750W range Up to 88km
Drivetrain Rear Derailleur Shimano Tourney 7S Shifter Shimano Tourney Thumb Shifter (push/pull) 7S Crankset Alloy 3-piece 170mm x 42T, alum arms, steel chainring Chain KMC Z-series 1/2 x 3/32" BB Crmo spindle sealed cartridge, 100 x 170mm Freewheel/Cog Shimano 7-speed 14-28 (14-16-18-20-22-24-28)
Components Headset Threaded, steel, 1 1/8" (28.6mm) Brakes JAX Mechanical disc Front & Rear, 160mm Handlebars 650mmW, Integrated w/fork Grips Moto w/right side twist throttle Stem Integrated w/fork Saddle Moto-style SuperSoft Dims: Length: 570mm, Width: 110mm/front - 180mm/rear, Height: 70mm/front - 100mm/Rear Pedals Alloy Platform
Extras Kickstand Alloy chainstay mount Light(s) Front + Rear powered by Valen lithium-ion battery charging system Fenders Steel w/steel stays Chaincover Chainring cover Bottle Cage Alum alloy Tools 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver Item Weight 72 lbs (battery included) Weight Limit 250lbs Rider Limit Single Passenger Compatible With Retrospec Rover Trailers
User Manual: Valen Rev Electric Fat Tire Bike
Return Policy Free returns for 60 days if the product is unused in original packaging.
In other situations, if you decide you do not want the product you have purchased and it has not been installed and is still in the original packaging, you have the option to return the product at your expense.
All items must be returned in a new, unused and ready-to-sell condition (including all original packaging, parts, and paperwork). Items not received in a ready-to-sell condition will incur up to 20% restocking fee. (The 20% re-stocking fee only applies for damaged or without original packaging returned products.)
Refund or exchange will be issued after we receive the returning item. All refund will be issued in the same method of payment as the original purchase.
Please note, there are no returns for all special orders, customized seat covers, and any products that are made to order.
Warranty Terms Should any original component prove defective in terms of workmanship within its warranty period, we will replace it. Warranty period for Retrospec electric bikes is as follows:
- • Electrical Components excluding Battery: 2 years with proper maintenance Battery: 1 year
- • Frame and Fork: 1 year
- • All other components: 6 months
This warranty does not include labor and transportation charges. The company cannot accept any responsibility for consequential or special damage. This warranty applies only to the original retail purchaser who must have a proof of purchase in order to validate any claim. This warranty applies only in the case of defective components and does not cover the effects of normal wear, nor damage caused by accident, abuse, excessive loads, neglect, improper assembly, improper maintenance or the addition of any item inconsistent with the original intended use of the bicycle.
No bicycle is indestructible and no claims can be accepted for damage caused by improper use, competition use, stunt riding, ramp jumping and leaping or similar activities. Claims must be submitted through your retailer. Your statutory rights are not affected. The company reserves the right to change any specification without notice. All information and specifications within this manual are correct at time of printing.
