Retrospec Koa Rev Electric Bike
Product Description:
On-road precision. Off-road performance. All-around comfort.
From everyday neighborhood cruising to adventuring off-road, Koa Rev is the ultimate down-for-anything ride. This e-bike can handle any terrain like a champ and look good while doing it. Equipped with fat, grippy tires to soak up bumps and cracks in the road and a powerful motor to propel you to new heights, you’ll never get tired of riding.
The Koa Rev makes your on-and-off-roading a comfortable ride. A 46-mile battery range can handle even the longest of trips. Assisted start technology makes awkward start and stops a thing of the past, and a 32km/h top speed with extra stable, fat 26 x 4.0 tires allow you to conquer any terrain on the way to your adventure.
Specs:
- Alloy 6061 TIG welded frame
- 26" x 4.0 tires w/ alloy rims
- 6 level pedal assist w/ Start-Aid & Throttle
- Rear hub moto
- 48V-750W Li-ion + charger
- Range up to 73km/750W
- Suspension fork
- Mechanical disc brakes
- 9-Speed
- 32km/h

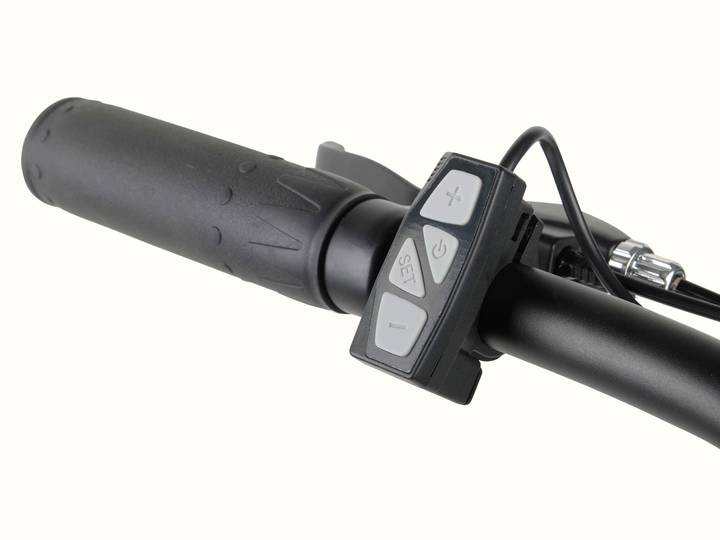

Quick Access to Controls
Handlebar-mounted LED control panel lets you quickly select your pedal assistance level, from 1-6, and keep track of your charge as you ride.
No More Wobbles
Activate Start Aid and the motor will push the e-bike at 4 mph for momentum at takeoff and no wobbly first pedal strokes.
Twist to Go
Convenient twist throttle puts 750W worth of power at your fingertips.

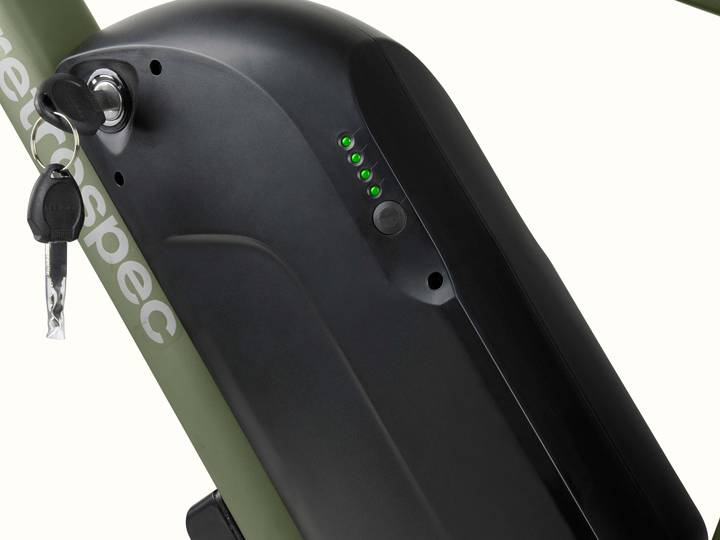

Durable, Long-Lasting, High Range
Li-ion Battery offers a range of up to 46 miles. Charges within 5-6 hours.
Off-Road Ready
Fat 26x4.0 tires comfortably roll over grates, driveway bumps, and worn-down roads while large tread grips onto chattery terrain for enhanced stability.
Tackle Inclines or Cruise Flats
With a robust, versatile Shimano 9-speed drivetrain.
Frameset Sizes 1 size 26" x 482mm/48cm/19" Material Alloy, 6061 TIG welded, hydroformed tubing Dropouts 1x rear fender eyelets, rear rack mounts Fork Suspension fork 80mm travel, alloy crown, steel stanchions, steel lowers, 1 1/8" (28.6mm)
Wheelset Rims Alloy double-wall, 26" x 4.0 x 36H x 13G Hubs F: Alum bolt-on 135mm, R: Hub motor bolt-on, 36H x 13G, 185mm Spokes 13G w/brass nipples, black ED finish Tires 26 x 4.0, S/V
E-Power System 48V/750W Motor Brushless rear hub motor, 9-pin connector, MXUS 48V/750W Battery Li-ion + Charger w/US plug, w/power level display. Drive Mode, Display PAS/twist throttle Right side FT158X twist throttle, speed sensor, LCD display panel w/6 PAS levels (Pedal Assist System), w/Start-Aid 6kph (~4mph). 48V/750W range Up to 46 miles
Drivetrain Rear Derailleur Shimano Altus 9S Shifter Altus Rapidfire Plus, w/OGD & Clamp Band Crankset Prowheel 170mm x 42T w/inside chainguide, outside chainring cover Chain KMC 3/32" x 118L BB Steel sealed cartridge, 120mm x 175mm Freewheel/Cog Shimano 9-speed
Components Headset Threadless, 1 1/8" (28.6mm) semi-integrated, steel+alum Brakes JAX Mechanical disc Front & Rear, 160mm Handlebars Alloy 680mmW x 25mm Rise Grips Comfort Stem Alum alloy threadless, 90mm ext x 7° rise Saddle SuperSoft MTB Seatpost Alloy, 30.4 x 300mmL, black Seatpost Clamp Alloy QR Pedals Alloy platform, loose-ball 9/16"
Extras Kickstand Rear mount, adjustable, aluminum alloy Light(s) Front (2x AA) + Rear (2x AA), batteries included Chaincover Chainring cover (not chaincover) Tools 4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver Weight Limit 250lbs Item Weight 74 lbs (battery included) Compatible With Retrospec Rover Trailers
User Manual: Koa Rev Electric Bike
Return Policy Free returns for 60 days if the product is unused in original packaging.
In other situations, if you decide you do not want the product you have purchased and it has not been installed and is still in the original packaging, you have the option to return the product at your expense.
All items must be returned in a new, unused and ready-to-sell condition (including all original packaging, parts, and paperwork). Items not received in a ready-to-sell condition will incur up to 20% restocking fee. (The 20% re-stocking fee only applies for damaged or without original packaging returned products.)
Refund or exchange will be issued after we receive the returning item. All refund will be issued in the same method of payment as the original purchase.
Please note, there are no returns for all special orders, customized seat covers, and any products that are made to order.
Warranty Terms Should any original component prove defective in terms of workmanship within its warranty period, we will replace it. Warranty period for Retrospec electric bikes is as follows:
- • Electrical Components excluding Battery: 2 years with proper maintenance Battery: 1 year
- • Frame and Fork: 1 year
- • All other components: 6 months
This warranty does not include labor and transportation charges. The company cannot accept any responsibility for consequential or special damage. This warranty applies only to the original retail purchaser who must have a proof of purchase in order to validate any claim. This warranty applies only in the case of defective components and does not cover the effects of normal wear, nor damage caused by accident, abuse, excessive loads, neglect, improper assembly, improper maintenance or the addition of any item inconsistent with the original intended use of the bicycle.
No bicycle is indestructible and no claims can be accepted for damage caused by improper use, competition use, stunt riding, ramp jumping and leaping or similar activities. Claims must be submitted through your retailer. Your statutory rights are not affected. The company reserves the right to change any specification without notice. All information and specifications within this manual are correct at time of printing.
